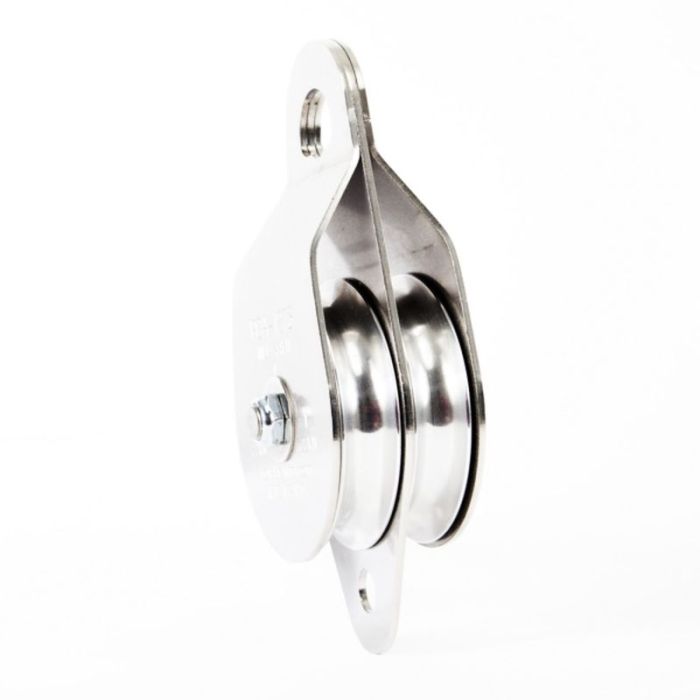

Portable Winch Double Swing Side Pulley with stainless steel plates
Quick Overview
Double Swing Side Pulley with stainless steel plates
This stainless steel swing side snatch block features two lightweight 100 mm diameter deep groove aluminum sheaves, with stainless steel plates that swing open to install rope. Sintered bronze bushings on stainless steel shaft provides 98% efficiency.
The middle plate has a hole at the bottom, allowing you to attach the end of the rope with a carabiner when necessary.
Use the 70 kN steel locking carabiner (PCA-1701) to anchor the snatch block to a polyester sling.
When you use this pulley with a PCA-1274 pulley, you can quadruple the pulling power of the winches. With two double pulleys, an amazing 5 tons of force can be exerted on a load (using the PCW5000)!
Material : Sides: Stainless steel. Sheaves: Aluminum
Rope
The middle plate has a hole at the bottom, allowing you to attach the end of the rope with a carabiner when necessary.
Use the 70 kN steel locking carabiner (PCA-1701) to anchor the snatch block to a polyester sling.
When you use this pulley with a PCA-1274 pulley, you can quadruple the pulling power of the winches. With two double pulleys, an amazing 5 tons of force can be exerted on a load (using the PCW5000)!
Material : Sides: Stainless steel. Sheaves: Aluminum
Rope
- Minimum diameter (metric) : 6 mm
- Maximum diameter (metric) : 12 mm
| Manufacturer | Portable Winch |
|---|---|
| Shipping Lead Time | Normally ships same day. |
| Last Lead Time Update | Dec 03, 2024 10:42 |
| Brand Name | Portable Winch |
| Local SKU | POCH-00016 |
| Paco SKU | POCH-00016 |
